FOES Fabrication Mixer 29"/27.5"

FOES Fabrication Mixer 29"/27.5"
$5,099.99
Please select options

Details

The 2021 Mixer is now available!

The very same frame found on the Foes Limited Edition Hall of Fame Mixer, the 2021 Mixer is designed around this proven wheel configuration to give you the correct head angle and BB height. With this concept in mind, the 2021 Mixer gives you a ride and feel like no other bicycle you have ridden. This design places the front wheel axle higher than the rear axle, which makes the bike easier to lift over obstacles, and more responsive. With the bigger wheel up front, the rider leans forward more to weight the front wheel for better traction. Look no further than any modern off-road motorcycle design for proof of concept. The 2021 Mixer has 6? of REAL travel that descends like it’s on rails and climbs like a spider monkey…

Here’s how the Mixer works…

The front axle is higher than the rear. The front of the bike feels lighter when it comes to clearing obstacles.
Cornering speed is increased because of the 2 wheel sizes. Wheels rotate in different arcs so the back wheel always tracks the front wheel’s path.
Acceleration is increased as chain stay length is shorter than 29” rear wheel models.
The new 2021 Mixer is a combination of CNC machined components and our exclusive hydroformed parts utilizing 6061 T6 aircraft alloy. All frames are hand welded, heat treated, machined and checked for alignment before being assembled right here in our factory.

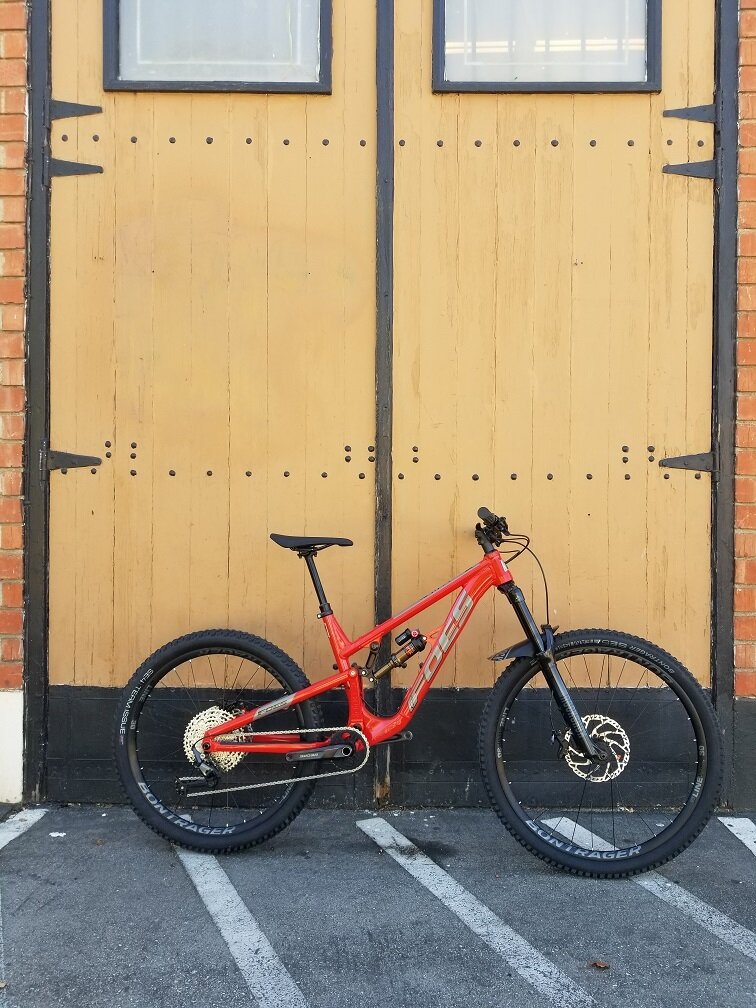

Foes 2021 Mixer
29? front wheel w/ 27.5” rear wheel.
Suspension travel 6?/ 160mm 2.4 : 1 Rising Rate leverage ratio.
Double butted 6061 alloy hydroformed down tube.
Tapered head tube 1 ?” ZS, 1 ½” ZS44|ZS56.
Full complement double-sealed pivot bearings.
68mm BB/threaded shell.
12mm x 148mm (boost spacing) thru-axle with hanger/nut combo.
Replaceable ISCG05 mounting plate..
Base Price $2624 with DVO air or coil shock.


Specifications
Product Foes Mixer Frame
Riding Type Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Wheel Size 27.5" (650b), 29", Other (Mullet)
Frame Material Aluminum
Frame Material Details Hydroformed hand-welded heat-treated 6061-T6 aircraft alloy, double-butted down tube, CNC machined components
Rear Travel 160mm
Rear Shock Manitou McLeod; upgrade options available
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Bottom Bracket 68mm BSA threaded
Rear Dropout / Hub Dimensions 148x12mm Boost
Front Derailleur Size N/A (1x-specific)
Seatpost Diameter 31.6mm
Max Tire Size
ISCG Tabs Replaceable ISCG05 mounting plate
Bottle Cage Mounts
Colors Red
Warranty 5 years
Weight
Miscellaneous • 2021 version
• Foes Progressive Linkage suspension system
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Internal cable routing
