FOES Fabrication FOES FXC275

Frame only

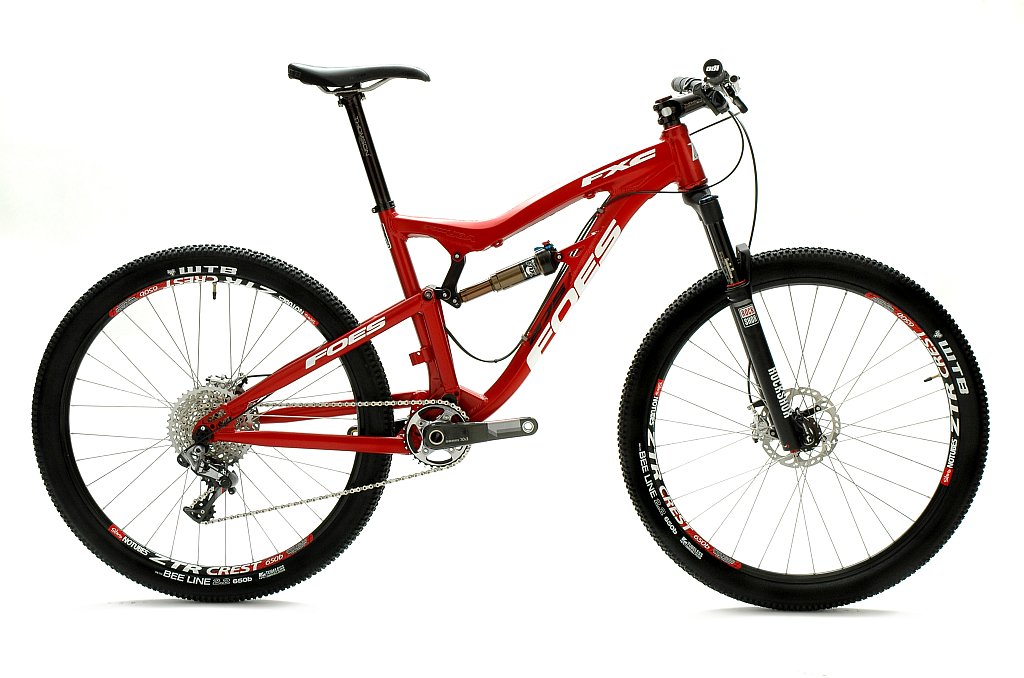

The FXC275 is a LIGHTWEIGHT XC TRAIL BIKE

-Adjustable Suspension Travel 4.5 to 5.0 inch
-Low Suspension Leverage Ratio
-Foes progressive linkage System
-Unique monocoque Top tube for maximum stiffness
-Double butted 6061 Alloy Hydroformed down Tube
-Frame and shock Weight : 6.5 lb (M size/Float CTD)
-Tapered Head Tube1-1/8ZS , 1.5EC
-Full complement Double Sealed Pivot Bearings
-68mm BB/shell with 12mm X 142mm rear hub spacing
-Replaceable CNC’d Der hanger Nut
-Replaceable ISCG05 CNC Tab

The new 2014 Foes FXC275 is one of the lightest non-carbon frame in it’s category. Med. Frame and CTD rear shock come in at 6.7lbs /3039 grams. The FXC275 is a cross country racer with a lighter hydroformed tubeset and redesigned swing arm, that saved over a pound of weight. The FXC275 has adjustable 4.5”- 5” of rear wheel travel, and a 2.3:1 leverage ratio, 68.5 deg. head angle, and 13.1 bb height.
The low center of gravity, single pivot swing-arm, Foes Swing-Link™, monocoque seat tower and perfect alignment bring together real results: superior strength and superior stiffness equal a superior ride. Using our experience building longer travel frames, the FXC275 is built light and tough, but has the refined descending traits of our other models. The FXC275 is ready for your next epic ride and race Extremely stable, zero flex, and you have great control.

Bike can be ordered in a custom color for an additional fee. Please contact us prior to placing your order if a custom color is desired.
